At Quick Cut Gasket & Rubber Corporation, we produce hot vulcanized and molded O-rings and splicing kits including Quad-Ring, Kalrez, backup, and encapsulated type rings. Vulcanized rings are cost effective, and can be produced in a wide range of diameters, delivering a flexible but strong joint. Molded rings are ideal for precision applications. Our O-rings are produced on clamshell molding equipment by some of the most experienced personnel in the industry.
A wide variety of standard and metric sizes are available in Shore “A” hardnesses from 40 to 90. Cord cross sections from 0.070″ to 1″ are available in standard sizes with 2 mm to 10 mm metric cord sizes available. For specialty applications, we also produce custom sizes in nitrile, Viton, neoprene, silicone, EPDM, and PTFE. Rings can be produced in diameters from 3″ to 300″ by hot vulcanizing and from 0.062″ to 5″ by molding. Dimensional tolerances will vary by size and production method, but range from ±0.062″ to ±.5″ or higher depending on size.
FDA or Mil-Spec approved materials can be used as needed and material certification is available. Many standard sizes are in stock for immediate delivery, with custom sizes available within 48 hours for small orders. Large orders typically take 1-2 weeks to process. For more information about our standard and custom O-rings, see the table below, or contact us directly.

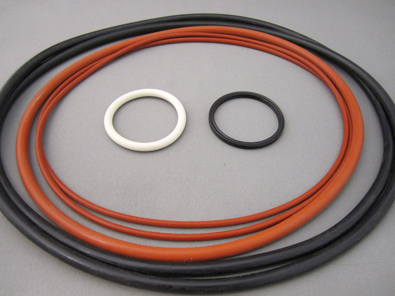

Examples of Our Work
Standard & Custom O-Rings Capabilities
- Manufacturing Process
-
Hot Vulcanizing
Molded
- Equipment
-
Clamshell
- Types
-
Standard
Metric
Quad Rings
Splicing Kits
Kalrez O-Rings
Backup Rings
Encapsulated Rings
- Material
-
Viton
Nitrile (Buna)
Neoprene
Silicone
EPDM
PTFE
FDA Approved
Mil-Spec
- Durometers
-
40 – 90 “A” Scale
- Temperature Range
-
-300 °F – 750 °F
- Cross Section
-
.070″ – 1″
2 mm – 10 mm
- Vulcanized Diameter
-
3″ – 300″ or more
- Molded Diameter
-
.062″ – 5″
- Tolerance
-
± .062″ – .5″ (or higher depending on size)
- Inspection
-
Visual
In-Process
Final
- Testing
-
Hardness
Durometer
Thickness
Tolerance
- Documentation
-
Material Certification
Inspection Report
- Additional Services
-
Laser Tooling
Assembly
Special Packaging
- Production Volume
-
1 to 1,000,000 pieces
- Typical Lead Time
-
1 to 2 weeks
24 to 48 hours (Small Quantities)
Just-In-Time Deliveries
Additional Information
- Industry Focus
-
Food and Beverage
Automotive
Airline
Military
Compressor
Municipalities
Electrical
Printing
Replacement Parts
Hydraulic
- Intended Applications
-
Grommets
Washers
Bumpers
Spacers
Anti-Vibration Pads
Conveyor Pads
Stoppers
Rubber Plugs
- Industry Standards
-
ASTM
FDA
Mil-Spec
UL
- File Formats
-
PDF
JPG
